SIOSE Desktop allows you to insert real surface criteria in hectare.

To add this query criterion, you have to select the condition operator. In surface you work with numeric value, so you need to add another comparison method (See condition Operators II).

_img40

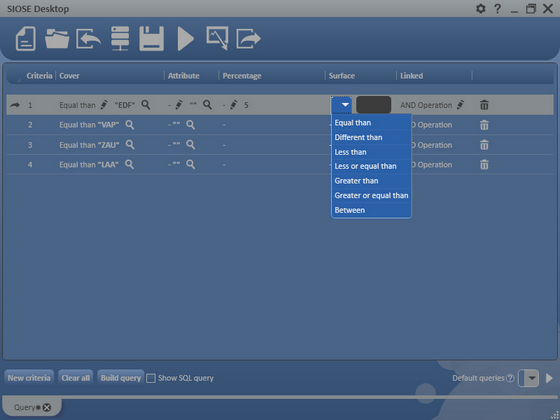

Figure 46. Condition Operators of surface

To introduce a surface, you have to click on the edition key in the criteria column. Then select the condition operator, and points out the surface you want at the text box. To finish out, click on the Intro key of your keyboard.

_img41

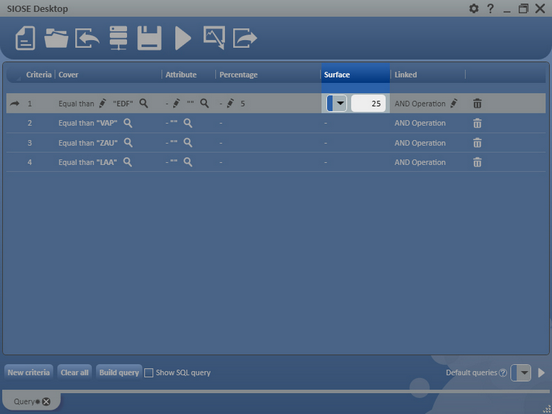

Figure 47. Criteria Panel when you insert surface
