Cover |

|
Cover |
|
Cover is one of the parameters concreted by SIOSE project.
Cover it’s defined as the land surface description into different units according to their biophysics properties (woodland, artificial surfaces, crops, etc.), they have a set of own attributes and specifics values that represent them.
From a SIOSE information source, you can obtain data about one or more covers.
To introduce a condition about Cover, you must select if the operation is an equality, if not, the outcomes are not going to contain the cover selected (See Condition Operators I).
Then push the magnifying glass tool (See other components), to open the windows selection. In this window you can find one by typing their name, or find it in the tree.
|

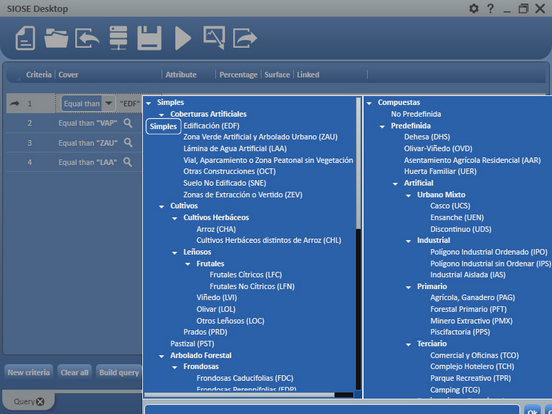

Figure 41. Cover window |
The selection is carried out clicking two times on the desirable class, or selecting one and then click on Ok.
|

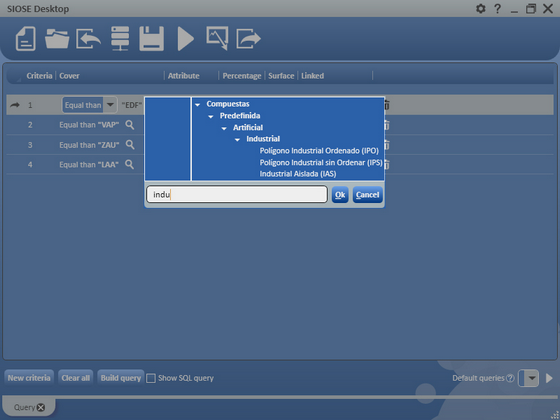

Figure 42. Cover window filtered bay “indu” |
